Our customers can take advantage of our comprehensive range of measuring instruments:

Tools for bearing maintenance
Diagnostic tools
Manual tools
Measuring tools
Power tools
Safety products

Our offer encompasses products of the world’s leading manufacturers, including SKF and Stahlwille.

Click here and check our offer for maintenace tools

Tools for mounting and dismounting of bearings

Our overwhelming list of tools will ensure safe and effective mounting and dismounting of your bearings, thereby considerably reducing risks of bearing damage.

Hydraulic tools

Below is the range of hydraulic tools in our offer – click to see more details.

Hydraulic pumps and oil injectors

Marat Group offers a very wide selection of hydraulic pumps and oil injectors.
We are able to provide the ideal solution for the most demanding hydraulic applications.

Types:

Air-driven pumps and oil injectors
Hand operated pumps
Oil injection kits
Oil injection sets

Hydraulic pump and oil injector selection guide
Max. working pressure	Pump	Type	Oil container capacity	Connection niple
30 MPa (4 350 psi)	THAP 030E	Air-driven pump	Separate container	G3/4
50 MPa (7 250 psi)	TMJL 50	Hand operated pump	2 700 cm³ (165 in³)	G1/4
70 MPa (10 153 psi)	TOOL PUMP SET 700B (NTN-SNR)	Hand operated pump	320 cm³ (20 in³) or 900 cm³ (55 in³)	G1/4
100 MPa (14 500 psi)	729124	Hand operated pump	250 cm³ (15 in³)	G1/4
100 MPa (14 500 psi)	TMJL 100	Hand operated pump	800 cm³ (48 in³)	G1/4
150 MPa (21 750 psi)	THAP 150E	Air-driven pump	Separate container	G3/4
	728619 E	Hand operated pump	2 550 cm³ (155 cal³)	G1/4
	TOOL PUMP SET 1500B (NTN-SNR)	Hand operated pump	2 540 cm³ (155 cal³)	G1/4
300 MPa (43 500 psi)	THAP 300E	Air-driven oil injector	Separate container	G3/4
	226400 E	Hand operated oil injector	200 cm³ (12,2 in³)	G3/4
	729101/300MPA	Oil injection kit	200 cm³ (12,2 in³)	Several
	THKI 300	Oil injection kit	200 cm³ (12,2 in³)	Several
400 MPa (58 000 psi)	THAP 400E	Air-driven oil injector	Separate container	G3/4
	226400 E/ 400	Hand operated oil injector	200 cm³ (12,2 in³)	G3/4
	729101/400MPA	Oil injection kit	200 cm³ (12,2 in³)	Several
	THKI 400	Oil injection kit	200 cm³ (12,2 in³)	Several

Hydraulic tool accessories

In addition to offering a wide variety of hydraulic tools, we also supply a comprehensive range of optional accessories to meet the needs of various demanding applications.
Product range:

High-pressure pipes – Maximum working pressure 300 MPa (43 500 psi) – used for applications where there is a requirement to transfer oil at high pressure
Flexible high-pressure hoses – Maximum working pressure up to 150 MPa (21 750 psi)
Feeler gauges – For accurate bearing clearance measurement
Quick connecting coupling and nipples – For easy pressure hose connection
Plugs for oil ducts and vent holes – Up to 400 MPa (58 000 psi)
Connection nipples – used as adapters to enable pipes and hoses to be connected to different thread sizes.
Extension pipes with connecting nipples – designed to cater for adapter and withdrawal sleeve application
Adapter block – The adapter block 226402 consists of a cast steel block to which a pressure gauge and high pressure pipe can be connected.
Mounting fluid – For easy and quick bearing mounting
Dismounting fluid – for easy and safe dismounting of bearings
SensorMount indicator – The tool to monitor the mounting of SensorMount bearings

Pressure gauges

Pressure Gauges are designed to fit Hydraulic Pumps and Oil Injectors. The gauges are all liquid filled and/or equipped with a restriction screw in order to absorb any sudden pressure drop thereby preventing damage. Safety glass and blowout discs are standard for all gauges and all, except for TOOL PUMP GAUGE 700 (NTN-SNR) have dual scales (MPa/psi).

Pressure range of 70 to 400 MPa
Protection against sudden pressure drops
Safety glass and blow out discs on all gauges
Stainless steel case
Dual scales MPa/psi
Easy to read, high visibility yellow gauge faces

Technical data (metric)
Designation	Pressure range	Diameter H	Connection thread	Weight	Accuracy
–	MPa	mm	G	kg	% of full scale
1077587	0-100	100	G1/2	0,80	1
1077587/2	0-100	63	G1/4	0,25	1,6
THGD 100*	0-100	79	G1/4	0,54	1
1077589	0-300	100	G1/2	0,80	1,6
1077589/3	0-400	100	G1/2	0,80	1
TOOL PUMP GAUGE 700	0-7	37	1/4” NPTF	0,16	N/A
* Digital pressure gauge

OK Coupling mounting and dismounting kits

SKF OK couplings use the SKF oil injection method to join two shaft together. The principle is to press two conical sleeves together on top of the shaft ends, while an oil film eliminates metallic contacts between the two surfaces. The result is a joint with very high torque capacity which can be easily mounted and dismounted. Every set is designed with a particular series of OK couplings in mind. They can be combined with other accessories from the SKF hydraulic tool program (e.g. pressure gauges, adaptor blocks, high pressure pipes, etc.)

The range of kits:

TMHK 35 (for sizes OKC 45- OKC 90)
TMHK 36 (for sizes OKC 100-OKC 170, OKCS 178 – OKCS 360)
TMHK 37 (for the size of OKC 180 – OKC 250, OKF 100 – OKF 300)
TMHK 38 (for the size of OKC 180 – OKC 490, OKF 300 – OKF 700)
TMHK 38s (for sizes OKC 180 – OKC 490, OKF 300-OKF 700)
TMHK 39 (for size OKC 500 – OKC 600)
TMHK 40 (for the size of OKC 500 and larger)
TMHK 41 (for the size of OKC 500 and larger)

Bearing fitting tools

Marat Group offers a wide variety of bearing fitting tools for mounting bearings in a cold condition. These tools significantly increase bearing service life and prevent premature failures.

Bearing fitting tool kits

Bearing Fitting Tool Kits TMFT 24 and TMFT 36 are designed for quick and precise mounting of bearings, while minimising the risk of bearing damage.

TABLE 1 – Bearing Fitting Tools – Technical data
Designation	TMFT 24	TMFT 36
Impact ring
Bore diameter	15–45 mm (0.59–1.77 in.)	10–55 mm (0.39–2.17 in.)
Outer diameter	32–100 mm (1.26–3.94 in.)	26–120 mm (1.02–4.72 in.)
Sleeves Maximum shaft length	Sleeve A: 220 mm (8.7 in.) Sleeve B: 220 mm (8.7 in.) Sleeve C: 225 mm (8.9 in.)
Hammer	TMFT 36-H, weight 0,9 kg (2.0 lb)
Carrying case dimensions	530 × 110 × 360 mm (20.9 × 4.3 × 14.2 in.)
Number of rings	24	36
Number of sleeves	3	3
Weight (including carrying case)	4,0 kg (8.9 lb)	4,4 kg (9.7 lb)

Combi kits

Combi kits TMMK 10–35 and TMMK 20-50 are multi-purpose kits for quick and easy mounting and dismounting

TABLE 2 – Combi Kits – Technical data
Designation	TMMK 10–35	TMMK 20-50
Number of impact rings	24	21
Number of sleeves	2	2
Impact rings bore diameter	10–35 mm (0.39–1.38 in.)	20–50 mm (0.79–1.97 in.)
Impact rings outer diameter	26–80 mm (1.02–3.15 in.)	42–110 mm (1.65–4.33 in.)
Dead-blow hammer	TMFT 36-H	TMFT 36-H
Dimensions of case	530 × 110 × 360 mm (20.9 × 4.3 × 14.2 in.)	530 × 110 × 360 mm (20.9 × 4.3 × 14.2 in.)
Weight	7,6 kg (16.8 lb)	8,5 kg (18.6 lb)

Hook spanners

Hook spanners considerably reduce the risk of nut damage.

TABLE 3 – Hook Spanners
Designation	Spanner design DIN 1810	Outer diameter lock nut
	mm	mm	in.
HN 0		16–20	0.6–0.8
HN 1	Ø20–Ø22	20–22	0.8–0.9
HN 2-3	Ø25–Ø28	25–28	1.0–1.1
HN 4	Ø30–Ø32	30–32	1.2–1.3
HN 5-6		38–45	1.5–1.8
HN 7	Ø52–Ø55	52–55	2.0–2.2
HN 8-9		58–65	2.3–2.6
HN 10-11	Ø68–Ø75	68–75	2.7–3.0
HN 12-13	Ø80–Ø90	80–90	3.1–3.5
HN 14		92	3.6
HN 15	Ø95–Ø100	95–100	3.7–3.9
HN 16		105	4.1
HN 17	Ø110–Ø115	110–115	4.3–4.5
HN 18-20	Ø120–Ø130	120–130	4.7–5.1
HN 21-22	Ø135–Ø145	135–145	5.3–5.7

The SKF HN 4-16/SET contains 9 spanners based on the DIN 1810 standard suitable for tightening and loosening lock nut sizes 4 up to 16.

Technical data – SKF HN 4-16/SET
Designation	Spanner design DIN 1810	Outer diameter lock nut
	mm	mm	in.
HN 4	Ø30–Ø32	30–32	1.2–1.3
HN 5-6		38–45	1.5–1.8
HN 7	Ø52–Ø55	52–55	2.0–2.2
HN 8-9		58–65	2.3–2.6
HN 10-11	Ø68–Ø75	68–75	2.7–3.0
HN 12-13	Ø80–Ø90	80–90	3.1–3.5
HN 14		92	3.6
HN 15	Ø95–Ø100	95–100	3.7–3.9
HN 16		105	4.1

Adjustable Hook Spanners HNA series facilitate the easy and safe tightening and loosening of KM, KML, N, AN, KMK, KMFE and KMT nuts

Technical data – Adjustable Hook Spanners HNA series
Designation	Outer diameter lock nut
	mm	in.
HNA 1-4	20–35	0.8–1.4
HNA 5-8	35–60	1.4–2.4
HNA 9-13	60–90	2.4–3.5
HNA 14-24	90–150	3.5–6.1

Nagrzewnice demontażowe

Zakres urządzeń grzewczych umożliwia szybki i bezpieczny demontaż pierścieni wewnętrznych łożysk walcowych i pokrywa szeroki zakres aplikacji. Aluminiowe pierścienie grzewcze serii TMBR są zaprojektowane do demontażu pierścieni wewnętrznych małych i średniej wielkości łożysk walcowych. Regulowane i stałe nagrzewnice indukcyjne serii EAZ są odpowiednie do częstego demontażu pierścieni wewnętrznych łożysk walcowych różnych rozmiarów.

Zakres produktów

Aluminiowe pierścienie grzewcze TMBR – stosowane do łożysk serii NU, NJ oraz NUP w zakresach wymiarów 204-252, 304-340 oraz 406-430
Regulowane nagrzewnice indukcyjne – stosowane do łożysk serii NU, NJ oraz NUP
Stałe nagrzewnice indukcyjne – o klasyfikacji napięciowej od 190 do 575V

Axial Lock Nut Sockets

Axial lock nut sockets are designed for safe and easy tightening and loosening of lock nuts.

Technical data
Designation	Dimensions						Connection
	Outer diameter lock nut		Outer diameter socket		Effective height
	mm	in.	mm	in.	mm	in.	in.
TMFS 0	18	0.7	22,0	0.9	45	1.8	3/8
TMFS 1	22	0.9	28,0	1.1	45	1.8	3/8
TMFS 2	25	1.0	33,0	1.3	61	2.4	1/2
TMFS 3	28	1.1	36,0	1.4	61	2.4	1/2
TMFS 4	32	1.3	38,0	1.5	58	2.3	1/2
TMFS 5	38	1.5	46,0	1.8	58	2.3	1/2
TMFS 6	45	1.8	53,0	2.1	58	2.3	1/2
TMFS 7	52	2.0	60,0	2.4	58	2.3	1/2
TMFS 8	58	2.3	68,0	2.7	58	2.3	1/2
TMFS 9	65	2.6	73,5	2.9	63	2.5	3/4
TMFS 10	70	2.8	78,5	3.1	63	2.5	3/4
TMFS 11	75	3.0	83,5	3.3	63	2.5	3/4
TMFS 12	80	3.1	88,5	3.5	63	2.5	3/4
TMFS 13	85	3.3	94,0	3.7	63	2.5	3/4
TMFS 14	92	3.6	103,0	4.1	80	3.2	1
TMFS 15	98	3.9	109,0	4.3	80	3.2	1
TMFS 16	105	4.1	116,0	4.6	80	3.2	1
TMFS 17	110	4.3	121,0	4.8	80	3.2	1
TMFS 18	120	4.7	131,0	5.2	80	3.2	1
TMFS 19	125	4.9	137,0	5.5	80	3.2	1
TMFS 20	130	5.1	143,0	5.7	80	3.2	1

Nagrzewnice demontażowe

Zakres produktów

Aluminiowe pierścienie grzewcze TMBR – stosowane do łożysk serii NU, NJ oraz NUP w zakresach wymiarów 204-252, 304-340 oraz 406-430
Regulowane nagrzewnice indukcyjne – stosowane do łożysk serii NU, NJ oraz NUP
Stałe nagrzewnice indukcyjne – o klasyfikacji napięciowej od 190 do 575V

Impact Spanners

Impact spanners of TMFN series are designed for safe and easy tightening and loosening of locknuts used to secure and adjust larger bearings directly on the shaft or with adapter and withdrawal sleeves.

Technical data – Impact Spanners
Designation	Locknut diameter
	mm		in
TMFN 23-30	150	190	5.9	7.5
TMFN 30-40	195	245	7.7	9.6
TMFN 40-52	250	310	9.8	12.2
TMFN 52-64	320	385	12.6	15.2
TMFN 64-80	400	495	15.7	19.5
TMFN 80-500	520	620	20.5	24.4
TMFN 500-600	630	735	24.8	28.9
TMFN 600-750	750	950	29.5	37.4

Nagrzewnice demontażowe

Zakres produktów

Aluminiowe pierścienie grzewcze TMBR – stosowane do łożysk serii NU, NJ oraz NUP w zakresach wymiarów 204-252, 304-340 oraz 406-430
Regulowane nagrzewnice indukcyjne – stosowane do łożysk serii NU, NJ oraz NUP
Stałe nagrzewnice indukcyjne – o klasyfikacji napięciowej od 190 do 575V

Lock nut spanners

The TMHN 7 set of lock nut spanners is especially designed for mounting self–aligning ball bearings as well as small spherical roller and CARB® bearings on tapered seatings

Spanner	Bearing designation
HNM 5	1205 EK	2205 EK	1305 EK
HNM 6	1206 EK	2206 EK	1306 EK	2306 K
HNM 7	1207 EK	2207 EK	1307 EK	2307 EK
HNM 8	1208 EK	2208 EK	1308 EK	2308 EK
HNM 9	1209 EK	2209 EK	1309 EK	2309 EK
HNM 10	1210 EK	2210 EK	1310 EK	2310 K
HNM 11	1211 EK	2211 EK	1311 EK	2311 K

Technical data
Designation	TMHN 7
Dimensions of case (w x d x h)	345 x 255 x 85 mm (13.6 x 10.0 x 3.3 in.)
Weight	2,2 kg (4.7 lb)

Nagrzewnice demontażowe

Zakres produktów

Aluminiowe pierścienie grzewcze TMBR – stosowane do łożysk serii NU, NJ oraz NUP w zakresach wymiarów 204-252, 304-340 oraz 406-430
Regulowane nagrzewnice indukcyjne – stosowane do łożysk serii NU, NJ oraz NUP
Stałe nagrzewnice indukcyjne – o klasyfikacji napięciowej od 190 do 575V

Bearing pullers

Bearing pullers are essential tools designed to minimize the risk of damaging bearing components in the process of dismounting. Marat Group offers a wide range of bearing pullers of the world’s leading manufacturers – SKF and NTN-SNR.

Designation	Width of grip		Effective arm length
	mm	in.	mm	in.
SKF Standard Jaw Pullers
TMMP 2×65	15–65	0.6–2.6	60	2.4
TMMP 2×170	25–170	1.0–6.7	135	5.3
TMMP 3×185	40–185	1.6–7.3	135	5.3
TMMP 3×230	40–230	1.6–9.0	210	8.3
TMMP 3×300	45–300	1.8–11.8	240	9.4
SKF Reversible Jaw Puller TMMR F series
TMMR 40F	23–48	0.9–1.9	67	2.6
TMMR 60F	23–68	0.9–2.7	82	3.2
TMMR 80F	41–83	1.6–3.3	98	3.9
TMMR 120F	41–124	1.6–4.9	124	4.9
TMMR 160F	68–164	2.7–6.5	143	5.6
TMMR 200F	65–204	2.6–8.0	169	6.7
TMMR 250F	74–254	2.9–10.0	183	7.2
TMMR 350F	74–354	2.9–13.9	238	9.4
TMMR 160XL	42-140	1.7-5.5	221	8.7
TMMR 200XL	42-180	1.7-7.1	221	8.7
TMMR 250XL	44-236	1.7-9.3	221	8.7
TMMR 350XL	44-336	1.7-13.2	221	8.7
SKF Heavy Duty Jaw Pullers
TMMP 6	50–127	2.0–5.0	120*	4.7*
TMMP 10	100–223	3.9–8.7	207*	8.2*
TMMP 15	140–326	5.5–12.8	340*	13.4*
Mechanical pullers SKF EasyPull
TMMA 60	36–150	1.4–5.9	150	5.9
TMMA 80	52–200	2.0–7.8	200	7.8
TMMA 120	75–250	3.0–9.8	250	9.8
Hydraulic pullers SKF EasyPull
TMMA 75H + …/SET	52–200	2.0–7.8	200	7.8
TMMA 100H + …/SET	75–250	3.0–9.8	250	9.8
SKF Hydraulic Jaw Puller Kit
TMHP 10E	75–280	3.0–11.0	110–200	4.3–7.9
SKF Hydraulic Puller Kit
TMHC 110E	50–170	1.9–6.7	70–120	2.8–4.7
SKF Hydraulically Assisted Heavy Duty Jaw Pullers
TMHP 15/260	195–386	7.7–15.2	264	10.4
TMHP 30/170	290–500	11.4–19.7	170	6.7
TMHP 30/350	290–500	11.4–19.7	350	13.7
TMHP 30/600	290–500	11.4–19.7	600	23.6
TMHP 50/140	310–506	12.2–19.9	140	5.5
TMHP 50/320	310–506	12.2–19.9	320	12.6
TMHP 50/570	310–506	12.2–19.9	570	22.4

Self-centering mechanical pullers
Self-centering hydraulic puller
Hydraulic puller for mounting and dismounting
Mechanical puller kits
Internal pullers
Blind housing puller kit
Deep groove ball bearing puller
Puller Accessories

Manual self centering extractors combined with 2 or 3 arms for easy and safe dismounting of bearings with small to medium dimensions. Also suitable for the removal of pulleys, gears etc. mounted on a shaft.

Specifications	Tool SCMP 2/3-270 / Self-center mech pul	Tool SCMP 2/3-120 / Self-center mech pul	Tool SCMP 2/3-180 / Self-center mech pul
Capacity	5,000 kg	2,000 kg	3,000 kg
Max range	160 mm	80 mm	120 mm
Min separation	42 mm	36 mm	38 mm
Max separation	270 mm	120 mm	180 mm
Weight	4.3 kg	1.6 kg	2.3 kg

Nagrzewnice demontażowe

Zakres produktów

Aluminiowe pierścienie grzewcze TMBR – stosowane do łożysk serii NU, NJ oraz NUP w zakresach wymiarów 204-252, 304-340 oraz 406-430
Regulowane nagrzewnice indukcyjne – stosowane do łożysk serii NU, NJ oraz NUP
Stałe nagrzewnice indukcyjne – o klasyfikacji napięciowej od 190 do 575V

Heaters for mounting

Our range of induction heaters can be used for mounting or dismounting by efficiently heating bearings and work pieces, both large and small. Whatever the size of your bearing may be, we will most probably have a right heater to help boost your bearing performance.

Electric hot plate

The SKF 729659 C is a heating tool especially designed for pre-heating batches of small bearings before mounting them. The adjustable temperature range of the plate varies from 50 to 200 °C (120 and 390 °F). The flat heating surface ensures even bearing heating and the cover helps retain heat and keep contaminants out.

Technical data
Designation		729659 C
Designation		729659 C/110V
Voltage	729659 C	230V (50/60Hz)
Voltage	729659 C/110V	115V (50/60Hz)
Power		1000 W
Temperature range		50°-200°C (120°-390°F)
Plate dimensions (l x w)		380 x 178 mm (15 x 7 in.)
Height of cover		50 mm (2 in.)
Overall dimensions (l x w x d)		400 x 240 x 130 mm (16 x 10 x 5 in.)
Weight		4,7 kg (10 lb)
Length of connection cable		2 metres (6.6 ft) (earth connection required)

Portable Induction Heater

Portable induction heaters are ideal for on-site operations. They are very lightweight and can be transported easily from place to place. We have two portable induction heaters in our offer: TMBH 1 (SKF) and TOOL FAST THERM 20 (NTN-SNR).

Designation	TMBH 1
Power:
Voltage	100 – 240 V, 50 – 60 Hz
Power (maximum)	350 Watt
Cosine	> 0,95
Component size range:
– inner diameter	20 … 100 mm (0.8 … 4 in.)
– width	< 50 mm (2 in.)
– weight	up to approximately 5 kg (11 lb)
Control functions:
Time control	0 – 60 minutes
Temperature control	0 – 200° C (32 – 392° F)
Accuracy temperature control	3° C (6° F)
Maximum temperature	200° C (392° F)
Dimensions:
Control box	150 x 330 x 105 mm (6 x 13 x 4 in.)
Heating clamp	114 x 114 mm (4.5 x 4.5 in.)
Operating space heating clamp	52 x 52 mm (2.0 x 2.0 in)
Complete unit in carrying case	370 x 240 x 130 mm (15 x 9 x 5 in)
Length clamp cable	75 cm (30 in.)
Length power cable	2 m (80 in.)
Length temperature probe cable	100 cm (40 in.)
Weight complete unit	4,5 kg (10 lb)

Designation	Fast Therm 20
Length	345 mm
Width	200 mm
Height	240 mm
Min bearing bore diameter	20 mm
Max bearing outer diameter	280 mm
Max power input	3.6 kVA
Max voltage	230 V
Max current	16 A
Frequency	50 Hz
Min temperature adjustment	50 °C
Max temperature adjustment	240 °C
Temperature holding at the end of cycle	Yes
Demagnetization	automatic
A	120 mm
B	100 mm
Max part mass	40 kg
Max width	120 mm
Weight	17 kg

Small Induction Heaters

Small induction heaters are very compact and can be easily moved between locations.

Designation	FAST THERM 35
Length	420 mm
Width	260 mm
Height	360 mm
Min bearing bore diameter	20 mm
Max bearing outer diameter	410 mm
Max power input	3.6 kVA
Max voltage	230 V
Max current	16 A
Frequency	50 Hz
Min temperature adjustment	50 °C
Max temperature adjustment	240 °C
Temperature holding at the end of cycle	Yes
Demagnetization	automatic
A	180 mm
B	180 mm
Max part mass	70 kg
Max width	180 mm
Weight	35 kg

Designation	TIH 030M/230V
Designation	TIH 030M/110V
Description	Induction heater
SKF m20 performance	28 kg (61.7 lb)
Voltage, V/Hz	230V/50-60Hz or 100-110V/50-60Hz
Work piece:
– Maximum weight	40 kg (88 lb)
– Maximum bore diameter	20 – 300 mm (0.8 – 11.8 in.)
Temperature control:
– Range	0 – 250 °C (32 – 482 °F)
– Magnetic probe	Yes, K-type
– Accuracy (electronics)	± 2 °C (± 3.6 °F)
Time control:
– Range	0 – 60 minutes
– Accuracy	± 0,01 sec.
Maximum temperature (approx.)	400 °C (750 °F)
Thermometer mode	Yes
Bearing mode	Yes
Power setting	2-step; 50% or 100%
Demagnetisation according to SKF norms (automatic)	Yes (<2 A/cm)
Can heat sealed bearings	Yes
Can heat pre-greased bearings	Yes
Error guiding codes	Yes
Thermal overload protection	Yes
Control panel	Control panel and LED display integrated in remote control
Operating area (w x h)	100 x 135 mm (3.9 x 5.3 in.)
Coil diameter	95 mm (3.7 in.)
Dimensions (w x d x h)	450 x 195 x 210 mm (17.7 x 7.6 x 8.2 in.)
Total weight, including yokes	20,9 kg (46.0 lb)
Maximum power consumption	2,0 kVA
Standard yokes	45 x 45 x 215 mm (1.7 x 1.7 x 8.4 in.), for heating bearings with bore diameter of 65 mm (2.6 in.) and larger.
	28 x 28 x 215 mm (1.1 x 1.1 x 8.4 in.), for heating bearings with bore diameter of 40 mm (1.6 in.) and larger.
	14 x 14 x 215 mm (0.5 x 0.5 x 8.4 in.), for heating bearings with bore diameter of 20 mm (0.8 in.) and larger
Core cross section	45 x 45 mm (1.7 x 1.7 in.)
Bearing support arms	Yes, foldable
Yoke storage	Yes, internal integrated in foldable bearing support arms
Cooling fan	No
Swivel arm	No
Housing material	Steel and glass filled polyamide
Warranty period	3 years

Medium Induction Heaters

Relatively compact and economical induction heater, providing high heating power for bearings up to 120-150 kg. They offer a right combination of efficiency and performance.

Designation	FAST THERM 150
Length	505 mm
Width	260 mm
Height	440 mm
Min bearing bore diameter	30 mm
Max bearing outer diameter	490 mm
Max power input	12.8 kVA
Max voltage	400 V
Max current	32 A
Frequency	50 Hz
Min temperature adjustment	50 °C
Max temperature adjustment	240 °C
Temperature holding at the end of cycle	Yes
Demagnetization	automatic
A	210 mm
B	215 mm
Max part mass	150 kg
Max width	210 mm
Weight	54 kg

Designation	TIH 100m
SKF m20 performance	97 kg (213 lb)
Voltage, V/Hz
– TIH 100M/230V	230V/50-60Hz
– TIH 100M/MV	400-460V/50-60Hz
Work piece:
– Maximum weight	120 kg (264 lb)
– Maximum bore diameter	20 – 400 mm (0.8 – 15.7 in.)
Temperature control:
– Range	0 – 250 °C (32 – 482 °F)
– Magnetic probe	Yes, K-type
– Accuracy (electronics)	± 2 °C (± 3,6 °F)
Time control:
– Range	0 – 60 minutes
– Accuracy	± 0,01 sec.
Maximum temperature (approx.)	400 °C (750 °F)
Thermometer mode	Yes
Bearing mode	Yes
Power reduction	2-step; 50 – 100%
Demagnetisation according to SKF norms (automatic)	Yes (<2 A/cm)
Can heat sealed bearings	Yes
Can heat pre – greased bearings	Yes
Error guiding codes	Yes
Thermal overload protection	Yes
Maximum magnetic flux	1,7 T
Control panel	Key board with LED in remote control
Operating area (w × h)	155 × 205 mm (6.1 × 8.0 in.)
Coil diameter	110 mm (4.3 in.)
Dimensions (w × d × h)	570 × 230 × 350 mm (22.4 × 9.0 × 13.7 in.)
Total weight, including yokes	42 kg (92 lb)
Maximum power consumption	3,6 kVA (230V)
	4,0-4,6 kVA (400-460V)
Number of standard yokes	3
Standard yokes	56 × 56 × 296 mm (2.2 × 2.2 × 11.7 in.), for heating bearings with bore diameter of 80 mm (3.1 in.) and larger
	28 × 28 × 296 mm (1.1 × 1.1 × 11.7 in.), for heating bearings with bore diameter of 40 mm (1.6 in.) and larger
	14 × 14 × 296 mm (0.6 × 0.6 × 11.7 in.), for heating bearings with bore diameter of 20 mm (0.8 in.) and larger
Core cross section	56 × 56 mm (2.2 × 2.2 in.)
Yoke storage	Yes, foldable
Sliding arm	No
Swivel arm	Yes, large yoke only
Cooling fan	No
Housing material	Steel and glass filled polyamide
Warranty period	3 years

Large Induction Heaters

Powerful heater suitable for bearings up to 300 kg. These heaters are very robust, efficient, and extremely popular among our customers.

Designation	TIH 220m
SKF m20 performance	220 kg (480 lbs)
Voltage, V/Hz	TIH 220M/LV: 200-230V/50-60Hz
	TIH 220M/MV: 400-460V/50-60Hz
Work piece:
– Maximum weight	300 kg (661.4 lb)
– Maximum bore diameter	60 – 600 mm (2.3 – 23.6 in.)
Temperature control:
– Range	0 – 250 °C (32 – 482 °F)
– Magnetic probe	Yes, K-type
– Accuracy (electronics)	± 2 °C (± 3.6 °F)
Time control:
– Range	0 – 60 minutes
– Accuracy	± 0,01 sec.
Maximum temperature (approx.)	400 °C (750 °F)
Thermometer mode	Yes
Bearing mode
(pre-set at 110 °C/230 °F)	Yes
Power reduction	2-step; 50 – 100%
Demagnetisation according to SKF norms (automatic)	Yes (<2 A/cm)
Can heat sealed bearings	Yes
Can heat pre – greased bearings	Yes
Error guiding codes	Yes
Thermal overload protection	Yes
Maximum magnetic flux	1,55 T
Control panel	Key board with LED in remote control
Operating area (w × h)	250 × 255 mm (9.8 × 10 in.)
Coil diameter	140 mm (5.5 in.)
Dimensions (w × d × h)	750 × 290 × 440 mm (29.5 × 11.4 × 17.3 in.)
Total weight, including yokes	86 kg (189 lbs)
Maximum power consumption	10,0-11,5 kVA (400-460V)
Number of standard yokes	2
Standard yokes	70 × 70 × 430 mm (2.8 × 2.8 × 16.9 in.), for heating bearings with bore diameter of 100 mm (3.9 in.) and larger
	40 × 40 × 430 mm (1.5 × 1.5 × 16.9 in.), for heating bearings with bore diameter of 60 mm (1.6 in.) and larger
Core cross section	70 × 70 mm (2.8 × 2.8 in.)
Yoke storage	Yes
Sliding arm	Yes, 70 x 70 x 430 mm (2.8 x 2.8 x 16.9 in.) yoke only
Swivel arm	No
Cooling fan	No
Housing material	Steel and glass fibre filled polyamide
Warranty period	3 years

Designation	FAST THERM 300
Length	1060 mm
Width	500 mm
Height	1090 mm
Min bearing bore diameter	30 mm
Max bearing outer diameter	740 mm
Max power input	12.8 kVA
Max voltage	400 V
Max current	32 A
Frequency	50 Hz
Min temperature adjustment	50 °C
Max temperature adjustment	240 °C
Temperature holding at the end of cycle	Yes
Demagnetization	automatic
A	330 mm
B	295 mm
Max part mass	300 kg
Max width	330 mm
Weight	75 kg

Extra Large Induction Heaters

Extremely high efficiency induction heater with 1 200 kg bearing heating capacity in the case of SKF’s TIH L44 and TIH L77 series and NTN-SNR’s TOOL SAFE THERM 1200 , and 700 kg heating capacity in the case of NTN-SNR’s less powerful Safe Therm 700. Most commonly used in heavy machine workshops, machine shops, steel mills, paper mills and railway or wind turbine sectors.

Designation	TIH L44/MV, TIH L44/LV, TIH L77/MV, TIH L77/LV
Voltage	MV: 400-460 V/50-60Hz
	LV: 200-240 V/50-60Hz
Work piece maximum weight	Bearing: 1 200 kg (2 600 lbs)
	Solid component: consult SKF
Coil diameter	175 mm (6.8 in.) for minimum work piece bore diameter of 185 mm (7.2 in.)
Standard yoke cross section	100 x 100 mm (3.9 x 3.9 in.) for minimum work piece bore diameter of: 150 mm (5.9 in.)
Operating area (w x h)
TIH L44:	425 x 492 mm (16.7 x 19.4 in.)
TIH L77:	725 x 792 mm (28.4 x 31.2 in.)
Maximum heating temperature (approx)	400 °C (750 °F)
Temperature control	0-250 °C (32-482 °F); in steps of 1°
Probe type	thermocouple, K type
Temperature accuracy (electronics)	± 2 °C (± 3.6 °F)
Time mode	0-120 minutes; in steps of 0,1 minute
Power reduction	50%-100%
Demagnetisation	Automatic; residual magnetism <2A/cm
Error guidance codes	Yes
Thermal overload protection	Yes
Recommended line protection	50 A fuse rating for MV execution
	100 A for LV execution
Power consumption (maximum)	MV: 20.0-23.0 kVA
	LV: 20.0-24.0kVA
Overall dimensions (w x d x h)
TIH L44:	Excl. legs: 1 200 x 600 x 850 mm (47.3 x 23.6 x 33.5 in.)
	Incl. legs: 1 550 x 1 330 x 850 mm (61 x 52.4 x 33.5 in.)
TIH L77:	Excl. legs: 1 320 x 600 x 1 150 mm (52 x 23.6 x 45.3 in.)
	Incl. legs: 1 850 x 1 330 x 1 150 mm (72.8 x 52.4 x 45.3 in.)
Weight
TIH L44:	300 kg (660 lbs)
TIH L77:	370 kg (815 lbs)
Warranty period	3 years

Designation	SAFE THERM 700
Length	780 mm
Width	1,200 mm
Height	1,060 mm
Min bearing bore diameter	45 mm
Max bearing outer diameter	900 mm
Max power input	25 kVA
Max voltage	400 V
Max current	63 A
Frequency	50 Hz
Min temperature adjustment	50 °C
Max temperature adjustment	240 °C
Temperature holding at the end of cycle	Yes
Demagnetization	automatic
A	440 mm
B	390 mm
Max part mass	700 kg
Max width	410 mm
Weight	280 kg

Designation	SAFE THERM 1200
Length	1,200 mm
Width	1,700 mm
Height	1,250 mm
Min bearing bore diameter	85 mm
Max bearing outer diameter	1,500 mm
Max power input	40 kVA
Max voltage	400 V
Max current	100 A
Frequency	50 Hz
Min temperature adjustment	50 °C
Max temperature adjustment	240 °C
Temperature holding at the end of cycle	Yes
Demagnetization	automatic
A	470 mm
B	690 mm
Max part mass	1,200 kg
Max width	440 mm
Weight	850 kg

Heaters for dismounting

SKF’s range of heating equipment enables quick and safe dismounting of cylindrical roller bearing inner rings and covers a wide range of applications. Aluminum heating rings TMBR series are designed for dismounting inner rings of small and medium-size cylindrical roller bearings. Adjustable and fixed induction heaters EAZ series are suitable for frequent dismounting of various sizes of cylindrical roller bearing inner rings.
Product Range

Aluminum heating rings TMBR series – for all bearing sizes of the NU, NJ and NUP series. The rings are available as standard for the following bearing sizes: 204 to 252, 304 to 340, 406 to 430
Adjustable induction heaters EAZ 80/130 and EAZ 130/170 – used for frequent dismounting of cylindrical roller bearings (NU, NJ and NUP series)
Fixed induction heaters – feature the classification voltage range of 190 to 575V. Available in various control cabinet versions, these heaters are designed to safely and easily dismount cylindrical roller bearing inner rings, which are often mounted with a very tight interference fit.

Lubrication solutions

Marat Group offers a vast range of lubricants for a variety of applications and operating conditions. We are an authorized distributor of the world’s leading lubricant producers (Shell, SKF, Rocol, and Henkel to name the few).

Types of lubricants:

General purpose industrial and automotive NLGI 2 grease
General purpose industrial and automotive NLGI 3 grease
High load, extreme pressure grease
High load, extreme pressure, wide temperature range grease
Biodegradable grease
Wind turbine blade and yaw grease
Low temperature, extremely high speed grease
Extreme pressure low temperature grease
High load, wide temperature grease
High viscosity grease with solid lubricants
Extremely high viscosity grease with solid lubricants
High load, high temperature, high
viscosity grease
High performance, high temperature grease
Extreme temperature, extreme condition grease
Food grade lubricants
Greases for SKF Energy Efficient (E2) bearings
Grid and gear coupling grease
Low temperature chassis grease
Dry film lubricant
Chain oils
Biodegradable lubricating oil for metal machining

Brands:

SHELL
ROCOL
HENKEL
LOTOS
SKF
NTN-SNR
MOBIL
TEXACO

Manual lubrication tools

Only appropriate lubrication can guarantee the optimal operation of bearings and the related mechanical assembly. Therefore, we offer a very wide range of tools for storing, handling, processing and applying of lubricants.
Key benefits:

Increase the service life of the bearing
Minimize the risks of shutdown
Increase machine productivity
Reduce oil consumption
Improve machine performance
Enable the highest standards of cleanliness and efficiency

Product range

Grease packer LAGP 400
Grease guns TLGH 1, LUB GREASE GUN SET
One hand operated grease gun LAGH 400
Battery driven grease guns TLGB 20 and TLGB 20/110V
Battery Grease Gun 400B LAGG
Grease filler pumps LAGF 18 and LAGF 50
Grease pumps LAGG and LAGT series.
Oil levelers LAHD 500 and LAHD 1000
Oil handling containers LAOS Series
Bearing packer VKN 550
Disposable grease resistant gloves TMBA G11D
Grease meter LAGM 1000E
Grease nozzles LAGS 8
Grease nipples LAGN 120
Grease fitting caps and tags TLAC series
Hose reels, TLRS and TLRC series

Lubrication systems

Lubrication systems for industrial applications ensure that your machinery receives required dosing of lubricants at right intervals, thereby minimizing friction and wear and optimizing bearing and machinery service life.

Main advantages:

Minimized repair and replacement costs
Increased machine reliability
Fewer shutdowns and production losses
Reduced environmental impact
Better work safety

Product range:

Single point automatic lubricators
- Single-point gas driven automatic lubricators (LAGD series)
- Electro-mechanically driven single-point automatic lubricators (TLSD series)
- Electro-mechanically driven single-point automatic lubricators (TLMR series)
- Single-point automatic lubricators LUBER (ECO BOOSTER, SMART BOOSTER, DRIVE BOOSTER, READY BOOSTER)
- Accessories for automatic lubricators
Multipoint automatic lubricators
- Multi-point automatic lubricator LAGD 400
- Multi-point automatic lubricator LAGD 1000
Single-line lubrication systems
- Lubricating pumps and pumping units
- Lubricant distributors and metering units
- Monitoring devices and switches
- Control units
- Valves
- Filters
- Lubrication accessories, fittings, tubings
Dual-line lubrication systems
- Lubrication pumps and pumping units
- Dual-line lubricant distributors
- Monitoring devices and switches
- Control units
- Valves
- Filters
- Lubrication accessories, fittings, tubings
Multi-line lubrication systems
- Lubrication pumps and pumping units
- Lubricant distributors and metering units
- Monitoring devices and switches
- Control units
- Valves
- Filters
- Lubrication accessories, fittings, tubings
Progressive lubrication systems
- Lubrication pumps and pumping units
- Lubricant distributors and metering units
- Monitoring devices and switches
- Control units
- Valves
- Filters
- Lubrication accessories, fittings, tubings
Circulating oil lubrication systems
- Oil circulating pump units
- Lubricant distributors and metering units
- Monitoring devices and switches
- Control units
- Valves
- Filters
- Lubrication accessories, fittings, tubings
Oil and Air lubrication systems
- Oil and air lubrication units
- Pumps and pumping units
- Lubricant distributors and metering units
- Monitoring devices and switches
- Control units
- Valves
- Filters
- Lubrication accessories, fittings, tubings
Minimal quantity lubrication systems
- SKF LubriLean Basic
- SKF LubriLean Smart
- SKF Vectolub VTEC
- Vectolub VE1B
- SKF LubriLean Vario
- SKF LubriLean VarioPlus
- SKF LubriLean VarioSuper
- SKF LubriLean DigitalSuper
Lubrication systems for special applications
- SKF EasyRail
- SKF WindLub
- SKF ChainLube
- SKF MachineLube
- SKF Grease Spraying System for Large Open Gears
- SKF Dry Lubrication System for Conveyors
- SKF Cylinder Lubrication System for Diesel Engines

Lubrication management tools

In order to ensure that our customers get the world-class lubrication tools, Marat Group offers a series of devices that are useful and reliable in controlling the quality of lubricants and help in the administration of a lubrication plan.

Key benefits:

Lengthen the periods between service shutdowns
Increase machine productivity
Reduce oil consumption
Improve machine performance
Ensure the highest standards of cleanliness and efficiency

Products:

Grease test kit TKGT 1
Oil check monitor TMEH 1
Oil storage station

Online Tools:

SKF DialSet
SKF VisioLub

Lubrication system components

In addition to offering a comprehensive portfolio of lubrication systems, we also supply a wide range of components to enhance the operating readiness and life of our customers’ machines.

Product range:

Lubrication pumps and pumping units
- Piston pumps
- Gear pumps
- Gerotor pump
- Vane pump
- Oil circulating pump unit

Minimal quantity lubrication units
- LubriLean Basic
- LubriLean Smart
- LubriLean Vario
- LubriLean VarioPlus
- LubriLean VarioSuper
- LubriLean DigitalSuper
- Vectolub VE1B
- Vectolub VTEC

Oil and air lubrication units
- OLA02
- OLA72
Lubricant metering devices
- Single-line lubricant metering devices
- Dual-line metering devices
- Progressive metering devices
- Flow limiters
- Flow meters
- Metering units
- Metering valves
- Mixing valves
Monitoring devices
- Flow monitors and flow sensors
- Humidity sensor FS-1
- Lubricant level switches
- Piston sensors
- Pressure gauges
- Pressure switches
- Pressure transmitters
Control units
Valves
Filters
SKF Lubrication accessories, fittings and tubings
- Brushes
- Electrical connectors
- Fittings
- Flow dividers
- Lubricant collector 24-187
- Lubrication pinion 24-0455
- Mixing heads 161-300
- Nozzles and spray heads
- Reservoirs
- Tubings

Alignment tools

Shaft and belt alignment tools play an instrumental role in increasing machine reliability and performance by means of simple and accurate alignment.

Belt alignment tools

Belt alignment tools allow for precise alignment of belt driven machinery, thereby increasing belt and pulley life and reducing vibration as well as energy costs.

Designation	TKBA 10	TKBA 20	TKBA 40
Easy of use and accuracy with V-belt pulleys	•	•	••
Use on other pulley types and chain sprockets	••	••	Optional side adapter TMEB A2 required
Max distance	3m (10ft)	6m (20ft)	6m (20ft)
Use in sunny environments		••
Use with aluminium pulleys & sprockets	Use G clamp – to fix on face	Use G clamp – to fix on face	Not recommended
Application suitability	If versatility is required (e.g. V-belts and/or other belts and/or chain sprockets) choose TKBA 10 or 20		If mostly used with V belt applications choose TKBA 40

In order to meet the most intricate demands of belt alignment, we offer a range of belt alignment tools, belt and pulley gauges and tension meters of the world’s leading drive belt manufacturer – OPTIBELT.

Product range:

OPTIBELT SERVICE KIT
OPTIBELT LASER POINTER II
OPTIBELT SERVICE-BOX
OPTIBELT TT
OPTIBELT TT MINI
OPTIBELT TT OPTICAL
OPTIBELT NOTEBOX
OPTIKRIK 0, I, II, III BELT TENSION GAUGES
MEASURING GAUGE
V-BELT AND PULLEY GROOVE GAUGES
OPTIBELT CUT II

Shaft alignment tools

Shaft alignment tools are designed to assist users with managing the alignment process for rotating machinery, which consequently helps prevent decreased production caused by machine misalignment, and promotes reduced energy consumption and increased operating lifespan.

Selection guide
Designation	TKSA 11	TKSA 31	TKSA 41	TKSA 51
User interface	iOS & Android	touch screen	touch screen	iOS
Measurement type	9-12-3	9-12-3	free	free
Automatic measurement		•	•	•
Wireless measuring heads	•		•	•
Measurement distance	18,5 cm ¹	2m ²	4m	5m
Minimal shaft rotation	180°	140°	90°	40°
Live positioning	•	•	•	•
Live alignment	only horizontal	•	•	•
Soft foot		•	•	• ³
Automatic report	•	•	•	•
Machine library		•	•
Can add photo to report	• ⁴		•	•
QR code recognition			•
Swap view				• free 3D rotation
Target values				•
Disturbance compensation				•
¹ the brackets can be mounted on the coupling hub. ² with USB cables supplied. ³ separate soft foot app . ⁴ depending on display device.

Selection guide
Designation	TKSA 41	TKSA 51	TKSA 60	TKSA 80
User interface	touch screen	iOS	keypad	keypad & touch screen
Measurement type	free	free	free	free
Automatic measurement	•	•
Wireless measuring heads	•	•	•	•
Measurement distance	4m	5m	10m	10m
Minimal shaft rotation	90°	40°	60°	60°
Live positioning	•	•	•	•
Live alignment	•	•	•	•
Soft foot	•	• ¹	•	•
Automatic report	•	•	•	•
Machine library	•		•	•
Can add photo to report	•	•
QR code recognition	•
Swap view		• free 3D rotation	• 2D swap	• 2D swap
Target values		•	•	•
Disturbance compensation		•
Vertical machine alignment			•	•
Machine train alignment				•
Run-out check				•
¹ separate soft foot app

Machinery shims

Accurate machine adjustment is an essential element of any alignment process. SKF single slot pre–cut shims are available in five different dimensions and in ten different thicknesses.

Main features and benefits of SKF shims:

Made of high quality stainless steel, allowing re–use
Easy to fit and to remove
Close tolerances for accurate alignment
Thickness clearly marked on each shim
Fully de–burred

Available sets:

TMAS 50 / KIT, 9 thicknesses and 1 size
TMAS 75 / KIT, 9 thicknesses and 1 size
TMAS 100 / KIT, 9 thickness and 1 size
TMAS 340, 9 thicknesses of 2 volumes
TMAS 360, 6 thicknesses in three sizes
TMAS 380 9 thicknesses and 2 sizes
TMAS 510, 9 thicknesses and 3 sizes
TMAS 720, 9 thicknesses and 4 sizes

Condition monitoring

Industry-leading tools and technologies for optimized machine maintenance and reliability.

Stethoscopes

The SKF TMST 3 is designed to detect bearing and machine noise as well as vibration. TMST 3 is supplied in a sturdy carrying case that contains a headset, two different length probes (70 and 220 mm) and a pre-recorded audio CD demonstrating the most common encountered troublesome machine noises.

Excellent sound quality
Easy to use
Lightweight, ergonomic design
Excellent quality headset
Facilitates the analysis and comparison of noise sources
Supplied with two probes enabling reach almost anywhere
Adjustable digital volume control

Designation	TMST 3
Frequency range	30 Hz-15kHz
Operating temperature	– 10 do + 45 °C (14-113 °F)
Output volume	Adjustable in 32 levels
Led indicator	Power on
	Sound volume
	Battery low
Maximum recorder output	250 mV
Headset	48 Ohm (with ear defender)
Auto switch off	yes, after 2 min.
Battery	4 x AAA/R03 (included)
Battery lifetime	30 hours (continuous use)
Dimensions handset	220 x 40 x 40 mm (8,6 x 1,6 x 1,6 in.)
Probe lenght	70 i 220 mm (2,8 i 8,7 in.)
Weight
Total	1,6 kg (3,5 lb)
Instrument	162 g (0,35 lb)
Headset	250 g (0,55 lb)

Endoscopes

Endoscopes are essential tools designed for internal inspection of machinery. They help minimize the need to disassemble machinery for inspection, thereby significantly saving time and money.

Key features and benefits:

High resolution miniature camera
Available with a 1 meter insertion tube in three different variants;
flexible, semi-rigid or with an articulating tip.
Easy access to most applications
Supplied with a side view adapter for peripheral vision
Powerful magnets and a tripod mount
Supplied with SD memory card
Optional accessories of insertion tubes

Designation	TKES 10F	TKES 10S	TKES 10A
Insertion tube & light source	Flexible tube	Semi-rigid pipe	Tube with an articulating tip
Image Sensor	CMOS Image Sensor	CMOS Image Sensor	CMOS Image Sensor
Resolution (H x V) – Still image (static) – Video (dynamic)	640 x 480 pixels 320 x 240 pixels	640 x 480 pixels 320 x 240 pixels	320 x 240 pixels 320 x 240 pixels
Size tip (insertion tube ) diameter	5, 8 mm (0.23 inch)	5, 8 mm (0.23 inch)	5, 8 mm (0.23 inch)
Tube length	1 m (39.4 inches)	1 m (39.4 inches)	1 m (39.4 inches)
Field of view	67 °		55 °
Depth of field	1, 5-6 cm (0.6-2.4 inches)		2-6 cm (0.8-2.4 inches)
Light source	4 white adjustable LED (0-275 Lux / 4 cm)	4 white adjustable LED (0-275 Lux / 4 cm)	4 white adjustable LED (0-275 Lux / 4 cm)
Probe working temperature	-20 to 60 ° C	-20 to +60 ° C	-20 to 60 ° C
Ingress protection level	IP 67	IP 67	IP 67

Thermometers

Our offer range

A user-friendly, durable pocket size thermometer intended for accurate temperature measurement.

Main Features & Benefits

Compact, ergonomic design
Wide measurement range, from -40 to 200 °C (-40 to 392 °F)
Temperature reading selection in °C or °F
Flexible probe tip for better surface contact, providing high measuring accuracy
Dust tight and water resistant, rated IP 65
Maximum temperature function allows temperature peak hold
Auto power off function
Ultra low power consumption

Technical data
Designation	TMTP 200
Temperature range	-40 to 200 °C (-40 to 392 °F)
Electronic accuracy	± 0,5 °C (£ 0.9 ºF)
Display resolution	1 °C/°F
Probe	K-Type
Case dimensions	260 x 85 x 180 mm (10.3 x 3.4 x 7.0 in.)
Dimensions	163 x 50 x 21 mm (6.4 x 2 x 0.8 in.)
Weight	95 g (0.2 lb)
Battery	3 x AAA (LR03)
Battery lifetime	4 000 hours (average using Alkaline batteries)
Switch off	Button or automatic after 5 minutes
Display indications	Temperature, °C or °F, maximum temperature, out of range, defective probe, low battery
IP rate	IP 65
Drop resistance	1 m (3.2 ft)

Contact thermometer – SKF TKDT 10- with dual channel capability suited for accurate temperature measurement.

Main Features & Benefits

Contact temperature measurement range from –200 to +1 372 °C (–328 to +2 501 °F)
Supplied with temperature probe TMDT 2-30 (max. 900 °C / (1 652 °F)); suitable for many direct contact applications
Can be used with any SKF temperature probe, including the TIH P20 probe supplied with SKF Induction Heaters
Can be used with an optional second SKF temperature probe enabling either probe temperature, or the temperature difference between the probes, to be displayed
Temperature readings displayed in either °C, °F, or Kelvin (K)
Temperature display can be frozen for ease of reading
Minimum, maximum and average temperatures can be displayed, together with a time stamp
User selectable auto power off function increases battery life
Supplied in a sturdy carrying case

Technical data
Designation	TKDT 10
Display	Large Backlit LCD
Displayed resolution	0,1 ° up to 1 000 °, otherwise 1 °
Backlit display	On/Off
Measurement modes	Min, max, average, differential, dual temperature reading
Measurement units	°C, °F, K
Auto switch off	20 minutes, on/off
Temperature using probe	–200 to +1 372 °C (–328 to +2 501 °F)
Accuracy	> -100 °C (> -148 °F): ±0.5% of reading ±1 °C (1.8 °F)
Probe compatibility	2x Type-K connectors

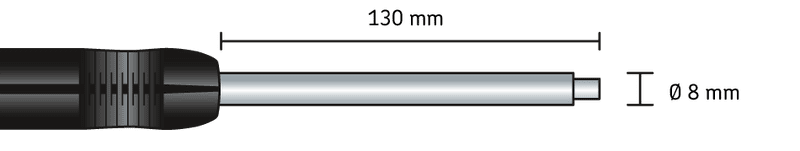

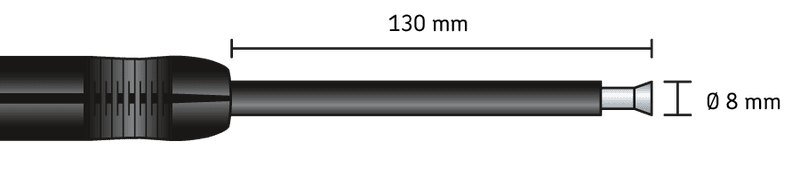

Probe supplied	TMDT 2-30, suitable for use up to 900 °C (1 650 °F)
Supplied probe length	130 mm (5.1 in.)
Probe response time	2.3 seconds (TMDT 2-30)
Battery	3x AAA Alkaline type IEC LR03
Operation time	18 hours typical use (backlight on)
Product dimensions	160 x 63 x 30 mm (6.3 x 2.5 x 1.2 in.)
Product weight	200 g (0.4 lbs)
Operating temperature	0 to 50 °C (32 to 120 °F)
Storage temperature	–10 to +60 °C (–4 to +150 °F)
Relative humidity	10 to 90% RH non-condensing
IP rating	IP 40
Case dimensions	530 x 85 x 180 mm (20.9 x 3.4 x 7.0 in.)
Kit contents	Thermometer with 1x contact probe TMDT 2-30 3x AAA batteries 1x printed instructions for use

TKTL 10 is a handheld infrared thermometer.

Main Features & Benefits

Maximum temperature always shown; helps identify the real hotspots
Auto shut off feature; helps optimise battery life
Colour display with temperature trend indication
Temperature range using infrared: –60 to +625 °C (–76 to +1 157 °F)
Distance to spot size: 16:1
Emissivity pre-set: 0,95

Technical data
Designation	TKTL 10
Description	Handheld infrared thermometer
Temperature range using infrared	–60 to +625 °C (–76 to +1 157 °F)
Environmental limits	Operation 0 to 50 °C (32 to 122 °F) 10 to 95% R.H.
	Storage –20 to +65 °C (–4 to +149 °F) 10 to 95% R.H.
Full range accuracy (Tamb=23 ±3 °C)	Tobj = 0 to 625 °C ±2% of reading or 2 °C (4 °F) whichever is greaterTobj = –60 to 0 °C ±(2 °C +0,05/degree)
Response time (90%)	<1 000 ms
Display	LCD
Displayed resolution	0,1 °C/F from –9.9~199.9, otherwise 1 °C/F
Distance to spot size	16:1
Spectral response	8–14 µm
Emissivity	Pre-set 0,95
User selectable back lit display	No, permanently on
User selectable laser pointer	No, permanently on
Measurement modes	Max temperature
Laser wavelength	635–650 nm
Laser	Class 2
Maximum laser power	1 mW
Dimensions	195 x 70 x 48 mm (7.7 x 2.7 x 1.9 in.)
Packaging	Carton box
Weight	230 g (0.5 lbs)
Battery	2 x AAA Alkaline type IEC LR03
Battery lifetime	18 hours
Switch off	Automatic after 15 s after trigger is released
EMC standards	EN 61326-1,-2-2:2006
Laser standards	21CFR, Ch 1-J

Laser Temp 301 is an infrared thermometer with laser targeting, enabling a preliminary diagnosis of the machine operation by means of accurate and safe measurement of the temperature either remotely or by a contact probe.

Main Features & Benefits

Wide measurement range in infrared mode: -50°C to +850°C
High degree of precision, using:
– the laser targeting device
– the excellent 30:1 distance: target ratio
– emissivity adjustable between 0.1 and 1
– type K thermocouple wire probe
Extremely quick measurements: response time less than 1 sec
Internal memory able to record up to 20 measurements
Equipped with the following functions:
– High / low, visual and audible adjustable alarms
– Automatic switch-off to maximise its useful life
– Max, min, difference, average measurements
Light, ergonomic gun shape
Simple to use, it may be easily configured to work in °C or °F
Back-lit display for easy reading

Technical data
Designation	Laser Temp 301
Length	175 mm
Width	110 mm
Height	45 mm
Min measured temperature	-50 °C
Max measured temperature	850 °C
Optics	D.S:30:1
Emissivity	From 0,10 to 1,00
Weight	0.23 kg

[row_inner_3] [col_inner_3 span=”4″ span__sm=”12″]

[/col_inner_3] [col_inner_3 span=”4″ span__sm=”12″] [/col_inner_3] [col_inner_3 span=”4″ span__sm=”12″] [/col_inner_3] [/row_inner_3]

The CMSS 3000-SL is a rugged device perfectly suited for measuring surface temperatures of hot, hazardous, moving or hard-to-reach objects.

Main Features & Benefits

Dual point laser sighting
Adjustable emissivity
50:1 distance-to-spot size ratio
Temperature range –60 to +1 000 °C (–75 to +1 800 °F)
Exceptional battery life
High and low alarm
MAX, MIN, DIF, AVG temperature displays
Amber backlight LCD display
High intensity white LCD flashlight
Heavy duty magnet in base of handle

Technical data
Designation	CMSS 3000-SL
Description	Heavy duty handheld infrared thermometer
Measurement range	–60 to +1 000 °C (–75 to +1 800 °F)
Operating range	0 to 50 °C (32 to +120 °F)
Accuracy	Tobj = 15 to 35 C° (60 to 95 °F), Tamb = 25 °C (75 °F), ±1 °C (±2 °F)Tobj = 35 to 1 000 C° (90 to 1 800 °F), Tamb = 25 °C, ±3 °C (75 °F, ±5 °F); ±2% of reading or +2 °C (+4 °F), whichever is greater
Update frequency	1.4 Hz
Wave length response	8 to 14 μm
Emissivity range	0.95 default – adjustable 0.1 to 1 step 0.01
Relative humidity	5 to 95% non-condensing
Resolution	From –9.9 to + 199.9 °C (14.2 to 391.8 °F); 0.1 °C (0.2 °F)
Response time (90%)	<1 sec
Distance spot ratio	50:1
Dimensions	47,0 x 197,0 x 203,3 mm (1.85 x 7.71 x 7.90 in.)
Weight	386,1 g (13.62 oz.) including batteries
Power	Two AAA batteries (included)
Battery life	Typical 180 hours, minimum 140 hours continuous use (Alkaline, without laser and back light)
Modes	Maximum, Minimum, Average, Difference, Lock

TKTL 20 is a digital infrared thermometer with laser and contact adaptor enabling precise remote or contact temperature measurements.

Main Features & Benefits

Supplied with temperature probe TMDT 2-30 (max. 900 °C (1 652 °F)); suitable for many direct contact applications
Can be used with any SKF temperature probe
User selectable, multiple temperature measurement modes including: maximum, minimum, average, differential and probe/infrared dual display, scan function
User selectable high and low alarm levels with audible warning signal
Mode dependant auto shut off feature optimises battery life
Colour display with temperature trend indication
Temperature range using infrared: –60 to +625 °C (–76 to +1 157 °F)
Temperature range using probe: –64 to +1 400 °C (–83 to +1 999 °F)
Distance to spot size: 16:1
Emissivity pre-set: 0,1–1,0
Supplied in a sturdy carrying case

Technical data
Designation	TKTL 20
Description	Infrared digital thermometer
Temperature range using infrared	–60 to +625 °C (–76 to +1 157 °F)
Temperature range using probe	–64 to +1 400 °C (–83 to +1 999 °F)
Probe supplied	TMDT 2-30, suitable for use up to 900 °C (1 650 °F)
Environmental limits	Operation 0 to 50 °C (32 to 122 °F) 10 to 95% R.H. Storage –20 to 65 °C (–4 to 149 °F) 10 to 95% R.H.
Full range accuracy (Tamb=23 ±3 °C)	Tobj = 0 to 635 °C ±2% of reading or 2 °C (4 °F) whichever is greater Tobj = –60 to 0 °C ±(2 °C +0,05/degree)
Response time (90%)	<1 000 ms
Display	Colour LCD
Displayed resolution	0,1 °C/F from –9.9~199.9, otherwise 1 °C/F
Distance to spot size	16:1
Spectral response	8–14 µm
Emissivity	0,1–1,0
User selectable back lit display	On/Off
User selectable laser pointer	On/Off
Measurement modes	Max, min, average, differential, probe/IR dual temperature modes
Alarm modes	High and low level alarm level with warning bleep
Laser wavelength	630–650 nm
Laser	Class 2
Maximum laser power	1 mW
Dimensions	195 x 70 x 48 mm (7.7 x 2.7 x 1.9 in)
Packaging	Sturdy carrying case
Case dimensions	530 x 85 x 180 mm (20.9 x 3.4 x 7.0 in.)
Weight	Total (incl. case): 1.1 kg (2.4 lb) TKTL 20: 230 g (0.50 lbs)
Battery	2 x AAA Alkaline type IEC LR03
Battery lifetime	18 hours
Switch off	IR mode automatic after 60 s after trigger is released (60 min can be manually selected) Probe mode automatic after 12 min
EMC standards	EN 61326-1,-2-2:2006
Laser standards	21CFR, Ch 1-J

Infrared digital thermometer TKTL 30 features dual laser sighting and enables both contact and non-contact measurement of temperature.

Main Features & Benefits

Dual laser sighting feature defines the diameter of the area being measured; helps the user to precisely pin-point the temperature measurement area
Supplied with temperature probe TMDT 2-30 (max. 900 °C (1 652 °F)); suitable for many direct contact applications
Can be used with any SKF temperature probe
User selectable, multiple temperature measurement modes including: maximum, minimum, average, differential and probe/infrared dual display, scan function
User selectable high and level alarm levels with audible warning signal
Mode dependant auto shut off feature optimises battery life
Temperature range using infrared: –60 to +1 000 °C (–76 to +1 832 °F)
Temperature range using probe: –64 to +1 400 °C (–83 to +1 999 °F)
Distance to spot size: 50:1
Emissivity pre-set: 0,1–1,0
Supplied in a sturdy carrying case

Technical data
Designation	Infrared digital thermometer TKTL 30
Description	Infrared digital thermometer
Temperature range using infrared	–60 to +1 000 °C (–76 to +1 832 °F)
Temperature range using probe	–64 to +1 400 °C (–83 to +1 999 °F)
Probe supplied	TMDT 2-30, suitable for use up to 900 °C (1 650 °F)
Environmental limits	Operation 0 to 50 °C (32 to 120 °F) 10 to 95% R.H. Storage –20 to 65 °C (–4 to 150 °F) 10 to 95% R.H.
Full range accuracy (Tamb=23 ±3 °C)	±2% of reading or 2 °C (4 °F) whichever is greater
Response time (90%)	<1 000 ms
Display	LCD
Displayed resolution	0,1 °C/F from –9.9~199.9, otherwise 1 °C/F
Distance to spot size	50:1
Spectral response	8–14 µm
Emissivity	0,1–1,0
User selectable back lit display	On/Off
User selectable laser pointer	On/Off
Measurement modes	Max, min, average, differential, probe/IR dual temperature modes
Alarm modes	High and low level alarm level with warning bleep
Laser wavelength	630–650 nm
Laser	Class 2
Maximum laser power	1 mW
Dimensions	203,3 x 197 x 47 mm (8.0 x 7.7 x 1.8 in.)
Packaging	Sturdy carrying case
Case dimensions	530 x 85 x 180 mm (20.9 x 3.4 x 7.0 in.)
Weight	Total (incl. case): 1 080 g (2.38 lbs) TKTL 30: 370 g (0.815 lbs)
Battery	2 x AAA Alkaline type IEC LR03
Battery lifetime	140 hours with laser and back light off. Otherwise 18 hours
Switch off	IR mode automatic after 60 s after trigger is released (60 min can be manually selected) Probe mode automatic after 12 min
EMC standards	EMC 2004/108/EC

TKTL 40 is a portable, lightweight, and multi- functional infrared and contact temperature thermometer with video and data logging capabilities.

Main Features & Benefits

Built-in camera allows pictures and videos, with all measurement information to be taken, stored, recalled and exported to PC
Environmental properties such as ambient, dew point and wet-bulb temperatures, as well as relative humidity, can be displayed and stored
Dual laser sighting defines the temperature measurement area
Supplied with temperature probe TMDT 2-30 (max. 900 °C (1 652 °F))for direct contact applications.
Can also be used with any other SKF temperature probe
User selectable, multiple temperature measurement modes including: maximum, minimum, average, differential and probe/infrared dual display
Data logging function can be used to visualise temperature changes over time
User selectable high and low alarm levels with audible warning signal
User selectable auto shut off feature optimises the rechargeable battery life
Temperature range using infrared: –50 to +1 000 °C (–58 to +1 832 °F)
Temperature range using probe: –50 to +1 370 °C (–58 to +2 498 °F)
Distance to spot size: 50:1
Emissivity pre-set: 0,1–1,0
Supplied in a sturdy carrying case

Technical data
Designation	TKTL 40
Display	2.2″, 320 x 240 colour LCD with backlight
Displayed resolution	0,1 ° up to 1 000 °, otherwise 1 °
Emissivity setting	0,1–1,0
Backlit display	Always on
Measurement modes	Min, max, average, differential, probe/IR dual display datalogger
HVAC functionalities	Wet bulb, dew point, humidity, air temperature
Alarm modes	High and low level alarm level with audible alarm
Photo and video mode	640 x 480 camera, images (JPEG) and video (3 GP)
Memory	310 MB internal memory. Expandable using micro SD memory card (8 GB max)
PC connection	Yes, mini USB cable included
Laser pointer	2x built-in class 2 lasers, on/off
Maximum laser power	1 mW
Auto switch off	3 minutes, adjustable
Tripod Mount	1/4″ BSW
Infrared temperature measurement
– Distance to spot size (D:S)	50:1
– Temperature range using infrared	–50 to +1 000 °C (–58 to +1 832 °F)
– Accuracy	20 to 500 °C: ±1 % of reading or 1 °C (1.8 °F) whichever is greater
	500 to 1 000 °C: ±1,5 % of reading
	-50 to 20 °C: ±3,5 °C (6.3 °F)
– Response time	<300 ms
– Spectral response	8–14 μm
Contact probe measurement
– Temperature using probe	–50 to +1 370 °C (–58 to +2 498 °F)
– Probe compatibility	Type K
– Probe supplied	TMDT 2-30, suitable for use up to 900 °C (1 650 °F)
– Accuracy	0 to 1 370 °C: ±0,5 % of reading ±1,5 °C (2.7 °F)
	-50 to 0 °C: ±2,5 °C (4.5 °F)
Battery	1x Rechargeable Li-ion Battery 3,7 V 1 400 mAh 5,2 W
Operation time	4 hours continuous use
Power adapter	100V-240V 50-60Hz AC Compact Charger with Europe, USA, UK and Australian plugs
Charging time	2 hours with AC adapter
Product dimensions	205 x 155 x 62 mm (8.1 x 6.1 x 2.4 in.)
Product weight	500 g (1.1 lb)
Operating temperature	0 to 50 °C (32 to 120 °F)
Storage temperature	–10 to +60 °C (–4 to +150 °F)
Relative humidity	10 to 90% RH non-condensing
IP rating	IP 40
Case dimensions	530 x 85 x 180 mm (20.9 x 3.4 x 7.0 in.)
Case contents	1x Infrared thermometer TKTL 40 1x Contact probe TMDT 2-30 1x AC battery charger 1x Mini USB to USB connection cable 1x printed instructions for use 1x Mini tripod

A wide range of thermocouple probes for a multitude of industrial applications.

Typical applications

Surface measurements (TMDT 2-30, -31, -32, -33)
Gas and liquid measurements (TMDT 2-34)
Semi solid materials (TMDT 2-35)
Clamp for pipe measurements (TMDT 2-36)
Rotating surface measurements (TMDT 2-40)
Liquid non-ferrous metal measurements (TMDT 2-41)
Ambient temperature measurements (TMDT 2-42)
Gas measurements – wire probes (TMDT 2-38, -39)
Heavy duty surface measurements (TMDT 2-43)

Part ordering details
Designation	Description
TMDT 2-30	Standard surface probe. For hard surfaces such as bearings, bearing housings, engine blocks, oven shields, etc. Max. temp. 900 °C / 1 650 °F . Response time 2,3 sec
TMDT 2-31	Magnetic surface probe. For hard, magnetic surfaces; the integral heat sink design and the low mass minimise thermal inertia and provide an accurate temperature measurement. Max. temp. 240 °C / 460 °F Response time 7,0 sec.
TMDT 2-32	Insulated surface probe. For hard surfaces where electrical wiring might cause short circuiting, e.g. electric motors, transformers, etc. Max. temp. 200 °C / 390 °F Response time 5,5 sec.
TMDT 2-33	Right angle surface probe. For hard surfaces in heavy duty applications, e.g. machine components, engines, etc. Max. temp. 450 °C / 840 °F Response time 8,0 sec.
TMDT 2-34	Gas and liquid probe. Flexible shank made of stainless steel, for liquids, oils, acids, etc. and at high temperature, e.g. open fire (not for molten aluminium). Max. temp. 1 100 °C / 2 010 °F Response time 12,0 sec.
TMDT 2-34/1.5	Gas and liquid probe. Same as TMDT 2-34, but with thin shank and faster response time. Very flexible, specially suitable for measuring temperature of gases. Max. temp. 900 °C / 1 650 °F Response time 6,0 sec.
TMDT 2-35	Probe with sharp tip. Can be easily inserted into semi-solid materials like food-stuffs, meat, plastic, asphalt, deep-frozen products, etc. Max. temp. 600 °C / 1 110 °F Response time 12,0 sec.
TMDT 2-36	Pipe clamp probe. For temperature measuring on pipes, cables, etc. Diameter up to ø 35 mm (1.4 in). Max. temp. 200 °C / 390 °F Response time 8,0 sec.
TMDT 2-37	Extension cable. For use with all K-types probes. Special lengths are available on request.
TMDT 2-38	Wire probe. Thin, light weight, very fast response, fibreglass insulated. Max. temp. 300°C / 570°F Response time 5,0 sec.
TMDT 2-39	High temperature wire probe. Thin, light weight, very fast response, ceramic insulation. Max. temp. 1 350 °C / 2 460 °F Response time 6,0 sec.
TMDT 2-40	Rotating probe. For moving or rotating, smooth surfaces. Four roller bearings provide suitable contact with the surfaces. Max. velocity 500 m/min. Max. temp. 200 °C / 390 °F Response time 0,6 sec.
TMDT 2-41	Non-ferrous foundry probe. Holder incl. dip-element for molten, non-ferrous metals. Highly resistant to corrosion and oxidation at high temperatures. Max. temp. 1 260 °C / 2 300 °F Response time 30,0 sec.
TMDT 2-42	Ambient temperature probe. For measurement of ambient temperature
TMDT 2-43	Heavy duty surface probe Same as TMDT 2-30 but with silicone encapsulated tip for heavy duty applications Max. temp. 300 °C / 570 °F Response time 3,0 sec.

Thermal Cameras

SKF Thermal camera provides a proactive way of helping detect problems before they occur, thereby positively contributing to safety and efficiency of your work environment. Thermal cameras present a clear-cut picture of the heat distribution of an asset. The thermal image, presented on a large LCD screen, shows you where the temperature is either too hot or too cold allowing you to pinpoint potential problems fast.
Key features and benefits:

A wide temperature measurement range
Eleven different selectable color palettes
Visual and audible temperature alarms
Automatic hot and cold spot cursors
Ability to view isotherms, temperature gradients and area analysis boxes
Built-in emissivity tables
SD Memory Card
Supplied with software
Solid construction
LCD Color
Long battery life
Voice annotation

Designation	TKTI 21	TKTI 31
Thermal detector (FPA)	160 x 120 uncooled FPA microbolometer	380 x 280 uncooled FPA microbolometer
Display	3.5 in. color LCD with LED backlight, 11 color palettes, thermal or visual image	3.5 in. color LCD with LED backlight, 11 color palettes, thermal or visual image
Field of view (FOV)	25 x 19 °	25 x 19 °
Spectral range	8-14 microns	8-14 microns
Theoretical spatial resolution IFOV	2.77 mrad	1.15 mrad
Measurable spatial resolution IFOV	8.31 mrad	3.46 mrad
Visual camera	1.3 megapixel digital camera	1.3 megapixel digital camera
Laser pointer	Built-in class 2 laser	Built-in class 2 laser
Frame rate and image frequency	9Hz	9Hz
Measurement range	-20 to +350 ° C	-20 to +600 ° C
Computer requirements	Windows XP, Vista, Windows 7	Windows XP, Vista, Windows 7
Medium	2 GB Micro SD card	2 GB Micro SD card
Software	SKF TKTI Thermal Camera Suite	SKF TKTI Thermal Camera Suite
Warranty	2 years	2 years
Carrying case dimensions (WxDxH)	105 x 230 x 345 mm	105 x 230 x 345 mm
Weight (incl. battery)	1.1 kg	1.1 kg

Vibration measurement tools

Potential machine failure is best signaled by abnormal vibration levels. Underlying causes of abnormal vibration include unbalance, misalignment, looseness of parts, deteriorating rolling element bearing and gear damage. Vibration measurement and analysis tools can help detect many serious problems at an early stage, hence allowing personnel to undertake preventive mechanisms in a timely manner.

Product Range:

SKF Machine Condition Advisor simultaneously measures vibration signals and temperature to indicate machine health or bearing damage.

Ordering information
Designation	CMAS 100-SL
includes:
SKF Machine Condition Advisor unit
Belt holster
Charger, international DC power supply
User manual
CD containing:
– User manual available in PDF files in English, French, German, Portuguese, Spanish and Swedish
– Link to training on SKF Knowledge Center
– SKF Machine Condition Advisor trend worksheet (Excel file)
– SKF Condition Monitoring Essentials catalog available in PDF file in English

Technical data
Vibration pickup:
– Internal:	Integrated piezoelectric acceleration
– External:	Accepts a standard 100 mV/g constant current accelerometer
Temperature sensor:	Internal infrared temperature sensor
Measurements:
– Velocity:	Range: 0,7 to 65,0 mm/s (RMS) (0.04 to 3.60 in./s (equivalent Peak)), meets ISO 10816-3
	Frequency: 10 to 1 000 Hz, meets ISO 2954
– Enveloped acceleration:	Range: 0,2 to 50,0 gE
	· Frequency: Similar to Band 3 (500 to 10 000 Hz)
– Temperature:	Range: –20 to +200 °C (–5 to +390 °F)
	Infrared temperature accuracy: 2 °C (4 °F)
	Distance: Short range, maximum 10 cm (4 in.) from target
Operating temperature range:	In use: –10 to +60 °C (15 to 140 °F)
	While charging: 0 to 40 °C (30 to 105 °F)
Storage temperature:
– Less than one month:	–20 to +45 °C (–5 to +115 °F)
– More than one month, but less than six months:	–20 to +35 °C (–5 to +95 °F)
Humidity:	95% relative humidity, non-condensing
Enclosure:	IP 54
Approvals:	CE
Drop test:	2 m (6.6 ft.)
Weight:	125 g (4.4 oz.)
Dimensions:
– Length:	200,0 mm (7.90 in.)
– Width:	47,0 mm (1.85 in.)
– Height:	25,4 mm (1.00 in.)
Battery life:	10 hours before charging again ( 1 000 measurements)
– With external sensor:	Up to 55% less battery life
Supported external sensor:	Any standard accelerometer with 100 mV/g sensitivity constant current
External sensor power:	24 V DC at 3,5 mA
Charger specifications:	Universal AC/DC wall plug-in
	Input: 90 to 264 V AC, 47 to 60 Hz
	Output: 5 V DC regulated
	3 to 4 hours for a full charge

The SKF Machine Condition Detector Pro IS CMVL 3600-IS-K-01-C is a rugged, intrinsically safe handheld analysis tool that captures and displays temperature, velocity and enveloped acceleration (vibration) and alarms.

Specifications
Measurements
Vibration pickup	Integrated piezoelectric acceleration (ceramic, shear type)
Measurement range:
– Velocity	0,3 to 55,0 mm/s (RMS) (0.02 to 3.00 in./s (Eq. Peak)), meets ISO Standard 10861-3
– Enveloped acceleration	0,3 to 20,0 gE
– Temperature	0 to 100 °C (30 to 210 °F)
Frequency range:
– Overall velocity	10 Hz to 1 kHz (tolerances measured within the frequency range are in accordance with ISO 2954)
– Acceleration enveloping band 3	500 Hz to 10 kHz
Power
Main power	Two 1,5 V alkaline AA batteries
Battery lifetime	30 hours
Backup battery	One 3 V BR1225 Lithium-ion battery
Auto off	Two minute countdown on last operation
User environment
Operating temperature:
– Ordinary locations	–20 to +60 °C (–5 to +140 °F )
– Hazardous locations	–20 to +40 °C (–5 to +105 °F )
Storage temperature	–35 to +70 °C (–30 to +160 °F)
Humidity	5 to 95% non-condensing
Hazardous area ratings
Intrinsic Safety (IS):
– ATEX	II1G EEx ia IIC T4 (Ta = –20 to +40 °C (–5 to +105 °F))
– USA, Canada	Class I, Division 1, Groups A, B, C, D T3A
Physical characteristics
Case	Water and dust resistant (IP 65)
Drop test	1,8 m (6 ft.) on multiple axes
Dimensions:
– Length	190,5 mm (7.50 in.)
– Width	43,2 mm (1.70 in.)
– Dept	41,4 mm (1.63 in.)
Weight	431 g (0.95 lb.) with battery
	635 g (1.4 lb.) with temperature magnet probe tip
Display viewing area	55,0 × 17,8 mm (2.17 × 0.70 in.)
Communications port type	Micro D RS-232
Quick connect interface
Receptacle	1/4 turn, 5/8-24 two lead thread with contact

Ordering information
Designation	CMVL 3600-IS-K-01-C
Each CMVL 3600-IS-K-01-C kit consists of the following items:
– SKF Machine Condition Detector Pro IS probe
– Temperature magnet probe tip for SKF Machine Condition Detector Pro IS probe
– AA Alkaline batteries, two each
– SKF Machine Condition Detector Pro IS setup key
– SKF Machine Condition Detector Pro IS padded carrying case
– SKF Machine Condition Detector Pro IS user manual
– SKF Machine Condition Detector Pro IS quick start card
– Vibration severity card

The SKF Basic Condition Monitoring kit CMAK 400-ML makes machine health monitoring a simple task for maintenance, operations, reliability and vibration analysis departments.

Main features & benefits

Assessment of overall machine condition
Test bearings, pumps, motors, compressors, etc.

Ordering information
Designation	CMAK 400-ML
includes:
SKF Machine Condition Advisor CMAS 100-SL
External sensor kit CMAC 112-K
SKF Infrared Thermometer CMSS 3000-SL
SKF Inspector 400 Ultrasonic Probe kit CMIN 400-K

CMAK 300-SL is a set of measurement devices perfectly suited for all industrial manufacturing plants.

Main Features & Benefits

Check bearing and lubrication condition
Assessment of overall machine condition

Ordering information
Designation	CMAK 300-SL
includes:
SKF Machine Condition Advisor CMAS 100-SL
SKF Infrared Thermometer CMSS 3000-SL
SKF Oil Check Monitor TMEH 1

The advanced bearing analysis kit for industrial oil analysis and vibration tests contains all the necessary equipment and consumables for oil and overall vibration condition monitoring.

Maint Features & Benefits

Fast accurate results for multiple oil parameters
Easy to use, portable kit
On-site maintenance decision
Assessment of overall machine condition

Ordering information
Designation	CMAK 600-EN
includes:
SKF Machine Condition Advisor CMAS 100-SL
Test cell (Water in Oil and Total Base Number)
Viscostick
Test paper: insoluble (qualitative)

For evaluation of electric motor bearings and general machine health

A fine collection of two measurement devices for electric motors and other industrial assets, the SKF Electric Motor Assessment kit- CMAK 200-SL- makes the evaluation of electric motor bearings and general machine health simple.

Main Features & Benefits

• Inspect and assess electric motor machine condition

• Measures: – Overall machine health – Bearing condition

• Safely detect electrical discharges in electric motors

• Ideal for novice and expert users

Ordering information
Designation	CMAK 200-SL
includes:
SKF Machine Condition Advisor CMAS 100-SL
SKF Electric Discharge Detector Pen TKED 1
Black nylon carrying case

The SKF Wireless MicroVibe in conjunction with an android tablet or smart phone provides the functionality of a portable data collector and analyzer. This versatile and easy-to-use wireless tool identifies problems and assesses machine condition safely, quickly and easily. The SKF Wireless MicroVibe CMVL 4000-ML multiple-language version supports seven different languages.

Main Features & Benefits

Reliable and fast wireless data collection (WiFi) from a safe distance
Low cost, compact and lightweight
Expert judgment criteria based on ISO vibration severity standard and SKF bearing condition evaluation
FFT spectrum analysis enables user to pinpoint problems like unbalance, misalignment, bearing, rubs, etc.
Multi-point automation for faster data collection with standard vibration measurements
Envelope acceleration, acceleration, velocity and displacement in both FFT spectrum and time waveform displays
Transfer machinery vibration data to a computer for trending and further analysis to the Data Management Software
Languages: English, German, Spanish, Swedish, French, Portuguese, and Chinese

Ordering information
Designation	SKF Wireless MicroVibe CMVL 4000-EN
includes:
Sensor module	one (1) each [CMVL 4000]
Probe (Stinger)	one (1) each [CMAC 4020]
USB cable, sensor module to USB	one (1) each [CMAC 4015]
Universal USB power supply with four adapters	one (1) each [CMAC 4010]
Two bar magnet, 18.1 kg (40 lbs.)	one (1) each [CMAC 4025]
Battery (rechargeable), standard NiMH (AAA size)	four (4) each, [CMAC 4005]
Battery charger, wall charging unit for up to four AAA NiMH batteries	one each [CMAC 4040]
CD: Data management software, mobile application, SKF User Manual	one (1) each [CMAC 4060]

Loop-powered vibration transmitters series CMSS 420VT / CMCP 420VT-T help you look after your rotating machinery, including pumps, motors, fans, blowers, compressors and other machinery for too much vibration. They work around the clock, seven days a week, continuously monitoring machinery health and transmiting directly into a PLC or DCS for trending, alarm and machine shutdown.

Main Features & Benefits
• Solid-state reliability
• Integral sensor
• Standard 4 to 20 mA output
• Dynamic signal output for portable analyzers
• CE approved
• Approved Class 1, Division 2, Groups B, C, D for United States and Canada

Ordering information
Designation	CMSS 420VT / CMCP 420VT-T
includes:
CMSS 420VT-1	25,4 mm/s (0 to 1 in./s) RMS, includes 1/4-28 and M8 mounting studs
CMSS 420VT-2	50,8 mm/s (0 to 2 in./s) RMS, includes 1/4-28 and M8 mounting studs
CMCP 420VT-T1	25,4 mm/s (0 to 1 in./s) RMS, 0 to 100 °C (30 to 210 °F), includes 1/4-28 and M8 mounting studs
CMCP 420VT-T2	50,8 mm/s (0 to 2 in./s) RMS, 0 to 100 °C (30 to 210 °F), includes 1/4-28 and M8 mounting studs

SKF Machine Condition Transmitter (MCT) systems CMSS 5301 / CMSS 5302 – One and two channel, complete MCT system

The CMSS 5301 (one channel) and CMSS 5302 (two channel) are vibration monitors that have been designed for use on typical rotating machinery such as motors, pumps, fans, turbines, compressors, chillers, etc.

Main Features & Benefits
• Two levels of alarm with relays
• True “OK” circuitry with relay
• Adjustable time delays
• Trip multiply
• 4 to 20 mA output
• Buffered transducer output
• Reset button
• Bright LED digital readout
• Class I, Division 2 rated transmitters with monitors

Description
The CMSS 5301 and CMSS 5302 accept inputs from any industry standard 100 mV/g accelerometer, conditions the input signals and provides a digital display and alarm status indication. Analog outputs (4 to 20 mA) are provided for each channel for interface to a PLC or DCS for trending, alarm and operator interface. The alarm contacts for the OK circuit and for Alert and Danger may be interfaced to machine control and shutdown systems for a complete vibration protection solution. The system is a pre-wired, turnkey package with power supply and bright LED displays. The power supply accepts 110 or 220 V AC, 50 or 60 Hz. They are available in either an Imperial or Metric configuration. The standard enclosure is NEMA 4X fiberglass; powder coated steel and stainless steel enclosures are available

Ordering Information
CMSS 5301: One channel complete Machine Condition Transmitter System with display and NEMA 4X fiberglass enclosure
CMSS 5301FG-E: CMSS 530A100A-ER-ISOLF, 0 to 1 in./s, RMS, universal power supply
CMSS 5301FG-M: CMSS 530A100A-MR-ISOLF, 0 to 25 mm/s, RMS, universal power supply
CMSS 5301FG-ENV: CMSS 590A100A, 0 to 10 gE, universal power supply

Ordering Information
CMSS 5302: Two channel complete Machine Condition Transmitter System with displays and NEMA 4X fiberglass enclosure:
CMSS 5302FG-E: Two CMSS 530A100A-ER-ISOLF, 0 to 1 in./s, RMS, universal power supply
CMSS 5302FG-M: Two CMSS 530A100A-MR-ISOLF, 0 to 25 mm/s, RMS, universal power supply
CMSS 5302FG-ENV: Two CMSS 590A100A, 0 to 10 gE, universal power supply
CMSS 5302FG-E-ENV: One CMSS 530A100A-ER-ISOLF, one CMSS 590A100A, universal power supply
CMSS 5302FG-M-ENV: One CMSS 530A100A-MR-ISOLF, one CMSS 590A100A, universal power supply
CMSS 5302FG-E-ENV-MS: One CMSS 530A100A-ER-ISOLF, one CMSS 590A100A, universal power supply
CMSS 5302FG-M-ENV-MS: One CMSS 530A100A-MR-ISOLF, one CMSS 590A100A, universal power supply

Enclosures are available in:
Fiberglass NEMA 4X (standard)
Powder coated steel NEMA 4 (CMSS 5301PS)
Stainless steel NEMA 4X (CMSS 5301SS)
Custom cast aluminum for explosion-proof application is available upon request

Tachometers

Tachometers are user–friendly and accurate tools utilizing laser or contact for measuring rotational and linear speed. They are equipped with a laser and a range of contact adapters, and can be utilized with a wide range of applications. Having a compact and ergonomic design, they can be operated with just one hand and are supplied in a sturdy carrying case.

Key features and benefits

Wide speed measurement range
Different modes of measurement
Ability to store readings
Ergonomic design
Portability
Backlit display

Designation	TKRT 10	TKRT 20
Display	5 digit LCD backlit display	5 digit LCD backlit display
Memory	10 readings memories	Last reading held for 1 minute
Measurement
Optical modes	r/min, hertz	r/min and r/s (also count and time interval)
Contact modes	r/min, meters, inches, yards, feet, per min, hertz	r/min and r/s, meters, yards, feet, per min and per sec
Count modes	total revs, metres, feet, yards	total revs, metres, feet, yards
Sampling time	0,5 seconds (over 120 r/min)	0,8 seconds or time between pulses 0,1 seconds auto-selection in max or min capture mode
Linear speed	0,2 to 1 500 metres/min (4 500 ft/min)	0,3 to 1 500 metres/min (4 500 ft/min) or equivalent in seconds
Optical Measurement
Rotational speed range	3 to 99 999 r/min	3 to 99 999 r/min
Accuracy	±0,05% of reading ±1 digit	±0,01% of reading ±1 digit
Measuring distance	50 to 500 mm (1.9 to 19.7 in.)	50 to 2 000 mm (1.9 to 78.7 in.)
Angle of operation	±45°	±80°
Laser sensor	1 × built-in class 2 laser	1 × built-in class 2 laser
Remote laser sensor	N/A	Optional TMRT 1-56
Contact measurement
Rotational speed range	2 to 20 000 r/min	Max. 50 000 r/min for 10 sec
Accuracy	±1% of reading ±1 digit	±1% of reading ±1 digit
Contact adaptors	Included with conical tip, conical recess and wheel	Included with r/min cone and removable metric wheel assembly
IP rating	IP 40	IP 40
Operation time	12 hours continuous use	24 hours continuous use
Operating temperature	0 to 50 °C (32 to 122 °F)	0 to 40 °C (32 to 104°F)

Ordering information – case contents
Designation	TKRT 10	TKRT 20
Package Contents	1x Tachometer SKF TKRT 10 1x set of three adapters contact 1x 9V battery 1x set of reflective tape 1x printed manual	1x Tachometer SKF TKRT 20 1x set of adapters contact TMRT 1-57 4 x AAA battery 1x set of reflective tape 1x printed manual 1x calibration certificate

Stroboscopes

The SKF Stroboscopes, TKRS 10 and TKRS 20 are portable, compact, easy-to-use stroboscopes that enable the motion of rotating or reciprocating machinery to appear frozen. They are instrumental to maintenance technicians.

Key features and benefits

Ergonomic design
Phase shift mode
Equipped with a tripod mounting thread
Robust case
Universal charger

Examples of application

Fan blades
Couplings
Gear wheels
Machine tool spindles
Belt drives

Selected models

Designation	Stroboscope TKRS 10	Stroboscope TKRS 20
Flash rate range	40 to 12 500 flashes per minute (f /min.)	30 to 300 000 flashes per minute (f/min.)
Tachometer range	40 to 59 000 r/min.	30 to 300 000 r/min.
Flash setting and display resolution	100 to 9 999 f/min.; 0,1 f/min., 10 000 to 12 500 f/min.; 1 f/min	30 to 9 999 f/min.; 0,1 f/min., 10 000 to 300 000 f/min.; 1 f/min
Flash source	Xenon tube: 10 W	LED
Flash duration	9-15 ms	0.1 ° -5 °
Light Power	154 mJ per flash	1 600 lux at 6 000 f /min. at 0.2 m (8 in.)
Display	8 character by 2 line LCD, alphanumeric
Total weight incl. carrying case	1.9 kg (4.2 lb)
Power pack type	NiMH, rechargeable and removable

Sound Pressure Meter

The SKF TMSP 1 is a high quality, handheld instrument for measuring the ambient noise of all kinds of working environments. The environmental noise is picked up by the microphone and then processed by the handset. The noise can be monitored both quantitatively and qualitatively. Equipped with an auto power-off feature to extend battery life and many different menu capabilities, the TMSP 1 can measure dBA and dBC sound levels. TMSP 1 is supplied in a carrying case complete with windshield, calibration screwdriver, jack for external outputs and an alkaline battery.

Key features and benefits

Ergonomic design
Easy to use
Able to measure overall sound level and noise level
in the low frequency range
Backlight function that allows you to work in places
with poor lighting
Four different measurement scales
Wide operating temperature range
LCD Display
Alarm function
Tripod mounting thread

Technical data
Designation	TMSP 1
Description	SKF Sound Pressure Meter
Frequency range	31,5 Hz to 8 KHz
Measuring level range	30 to 130 dB
Display	LCD
Digital display	4 digits
	Resolution: 0,1 dB
	Display update: 0,5 s
Analogue display	50 segments bar-graph
	Resolution: 1 dB
	Display update: 100 ms
Time weighting	Fast (125 ms), Slow (1 s)
Level ranges	Lo = 30 ~ 80 dB
	Med = 50 ~ 100 dB
	Hi = 80 ~ 130 dB
	Auto = 30~130 dB
Accuracy	±1,5 dB (ref 94 dB @1 KHz)
Dynamic range	50 dB
Power supply	9V Alkaline, IEC 6LR61
Power life	50 hours (with alkaline battery)
Operation temperature	0 to 40 ºC (32 to 104 º F)
Operation humidity	10 to 90 % RH
Operation altitude	Up to 2 000 m (6 560 ft) above sea level
Storage temperature	-10 to 60 ºC (14 to 140 ºF)
Storage humidity	10 to 75 % RH
Dimensions	275 x 64 x 30 mm (10.8 x 2.5 x 1.2 in.)
Case dimensions	530 x 85 x 180 mm (20.9 x 3.4 x 7.0 in.)
Weight	285 g ( 0.76 lb) including battery
Total weight (incl.case)	1,1 kg (2.4 lb)

Ultrasonic devices

Ultrasonic devices enable quick and easy detection of air leaks in compressed air systems. Ultrasonic leak detectors can help detect leaks efficiently, allowing the necessary repairs to be made. A sound pressure meter can measure the sound level, allowing corrective measures to be made against the detrimental effects of excessive noise (e.g. loss of hearing or worker fatigue).

Products

Ultrasonic leak detector TMSU 1
SKF Inspector 400 ultrasonic probe CMIN 400-K

Technical data
Designation	TMSU 1
Desciption	Ultrasonic leak detector
Amplification	7 levels: 20, 30, 40, 50, 60, 70 and 80 dB
Ultrasound sensor	Open sensor with a 16 mm (1/2 in. Ø) diameter
	(19 mm – ¾ in. Ø – exterior), central frequency of 40kHz
Detected frequencies	38,4 kHz, ± 2 kHz (-3 dB)
Power	Two alkaline AA batteries, 1.5 V.
	Rechargeable batteries can also be used but the usage time will be reduced
Battery life	Typically 20 hours
Dimensions	Body: 170 x 42 x 31 mm (6.70 x 1.65 x 1.22 in.)
	Flexible tube length: 400 mm (15.75 in.)
Case dimensions	530 x 110 x 360 mm (20.9 x 4.3 x 14.2 in.)
Weight	412 g incl. batteries (14.5 oz)
Operating temperature range	-10 ºC to 50ºC (14 ºF to 122 ºF)
Technical data
Designation	CMIN 400-K
Description	SKF Inspector 400 Ultrasonic Probe
Frequency response	20 to 100 kHz (centered at 38 to 42 kHz)
Indicator	10 segment LED bar graph
Sensitivity selection	8-position precision attenuation
Power	9 V alkaline battery
Headset	Lightweight foam lined double headset wired monophonic impedance; 16 Ω
Response time	300 m/s
Ambient operating temperature range	0 to 50 °C (30 to 120 °F)
Relative humidity	10 to 95% non-condensing at up to 30 °C (85 °F)
Dimensions	203 x 50 x 133 mm (8.00 x 2.00 x 5.25 in.)
Weight	320 g (11 oz.)

Electrical Discharge Detector

The electrical discharge detector TKED 1 is a simple to use hand-held instrument for monitoring the electrical discharges emitted from motor bearings. TKED 1 detects electrical discharge within the frequency range of 50 MHz to 200 MHz. Electrical discharges signal electrical erosion, lubricant degradation and ultimately bearing failure. Therefore, TKED 1, by allowing for effective monitoring of electrical discharges, essentially helps prevent unplanned machine downtime.

Key features and benefits

Easy to use
Compact
LED backlit display
No special training required
Unique remote solution
Can detect electrical discharges at a time
base of 10 seconds, 30 seconds or indefinite
Can be used in most industrial environments (IP 55)

Technical data
Designation	TKED 1
Description	SKF Electrical Discharge Detector Pen
Power supply	4,5V – 3 x standard AAA batteries (LR03, AM4)
Time control: – pre-sets – default	10 or 30 seconds indefinite
Operational and storage temperature	0º to 50 °C (32 to 122 ºF) -20 to 70 °C (-4 to 158 ºF)
IP level	IP 55
Display	LCD counter range: 0 to 99 999 discharges. User selectable backlight and low battery warning
Case Dimensions (l x w x h)	260 x 85 x 180 mm (10.3 x 3.4 x 7.0 in.)
Total case and contents weight	0,6 kg (1.35 lb)

Electric motor test and monitoring solutions

We offer a vast range of equipment and solutions for testing and monitoring electric motors for a wide variety of industries and customer segments. Marat Group is the leading provider of Baker Instrument Company’s products (now part of SKF).

Product Range

Static motor analyzers

- Baker AWA-IV
- Baker DX (CMEM 99-DX6-RDS3, CMEM 99-DX12-RDS3, CMEM 99-DX15-RDS3)
- Power packs
- Accessories
- Baker DX-15
- Baker DX-15A

Dynamic motor analyzers

- SKF – EXP4000

Online motor analysis system

- SKF On-line Motor Analysis System – NetEP

Motor quality control test systems

- Baker WinTATS – Traction armature test system
- Baker WinAST- Automated stator tester
- Baker DT05 Digital Impulse Tester – Surge/impulse tester

Single-function devices

- Baker DT05 Digital Impulse Tester – for testing coils, stators, rotors, transformers and other types of windings
- Baker RT45 – Low Resistance Ohm Meter for electric motor quality assurance

Energy and Sustainability Management

SKF Energy monitoring kit CMAK 450-ML makes it possible for any facility to lower their energy cost and reduce their CO2 emissions by monitoring and optimizing the energy used by their compressed air systems.

Ordering Information – CMAK 450-ML Contents
Designation	Description
SKF Machine Condition Advisor with charger and belt holster (CMAS 100-SL)	simultaneously measures machine vibration signals and temperature to indicate machine health and bearing condition
External sensor kit for SKF Machine Condition Advisor (CMAC 105)	The external vibration sensor with magnet provides convenience for hard-to-reach surfaces and more repeatable and accurate measurements.
Infrared thermometer (CMSS 3000-SL)	The heavy duty SKF Infrared Thermometer is a dual laser sighted, noncontact instrument for long range application
Inspector 400 ultrasonic probe with lightweight headset, focusing probe, stethoscope module and extensions (CMIN 400-K)	The SKF Inspector 400 Ultrasonic Probe senses high frequency sounds produced by operating equipment, leaks, and electrical discharges and makes them audible. The kit features all of the accessories from the SKF Inspector 400 Ultrasonic Probe kit
Hioki clamp-on power meter (CPT 3169-20), with voltage cord set, input cord label and power cord	Instrument used for obtaining energy related measurements for energy conservation programs, ISO 14001 testing, and electrical equipment diagnosis. Power measuring instrument for factory power supply maintenance, and to improve energy-saving efficiency. Measures voltage, current, active power, reactive power, apparent power, power factor, integrated value, frequency, and harmonics.
Hioki power meter clamps (CPT 9661), two clamps, 500 A AC	Designed for use with the Hioki Clamp-on Power Meter. CE approved for input of up to 500 Ampere AC
Carrying case, anodized aluminum, rugged – for industrial and multipurpose use, 660 x 330 x 178 mm (26 x 13 x 7 in.)	The instruments are packaged in a light, durable aluminum carrying case for industrial environments

Portable data collectors and analyzers

SKF is a leading manufacturer of advanced portable analyzers and data collectors. SKF Micrologs offer versatility, reliability and functionality that are virtually unparalleled by any other similar device. With robust, high-speed data processors and optimum data storage capacity, SKF Microlog analyzers are equipped to operate within today’s most advanced computerized maintenance management systems.

Data can be captured from a variety of sources:

Handheld accelerometers
Magnetically mounted accelerometers
Permanently mounted vibration sensors
On-line monitoring systems

Product range

Microlog Analyzer AX series
Microlog Analyzer GX series
Microlog CMXA 51-IS (intrinsically safe, certified by ATEX)
SKF Microlog Inspector (most advanced system for recording inspection data)

Model	Microlog Analyzer CMXA 80 (AX series)	Microlog Analyzer CMXA 75 (GX series)	Microlog Analyzer CMXA 51-IS
Measurement	Simultaneous triaxial or four-channel	one-to-four channel	One data acquisition and one phase channel
Processor	Marvell 806 MHz PXA320	Marvell 806 MHz PXA320	Marvell 806 MHz PXA320
Safety standard	IP 65	IP 65	IP 65
Battery	Li-ion 6 600 mAh	Li-ion smart battery pack	Rechargeable NiMH
Display	6.4 in. VGA color transflective TFT LCD screen for indoor and outdoor use, 640 x 480 pixels resolution, 16-bit color	1/4 VGA color TFT screen, 320 x 240 pixels resolution	1/4 VGA (240 x 320) backlit monochrome touch screen LCD
Certification	ATEX, IECEx, CE, CSA	ATEX, IECEx, CE, CSA	Intrinsically safe ATEX and IECEx
Software:	SKF @ptitude Analyst	SKF @ptitude Analyst	SKF @ptitude Analyst
Total weight:	1, 6 kg	715 g	700 grams
Measurement parameters	Acceleration, velocity, displacement, gE, temperature, phase, voltage, user specified

Workshop tools

Tools

Manual tools
Workshop furniture
Measurement tools
Power tools
Pneumatic tools
Welding
Abrasives
Cutting & machining tools

Workplace safety products

Hearing protection
Respiratory protection
Eye and face protection
Head protection
Protective gloves
Protective clothing
Work clothing for short-term use
Working and protective boots
Equipment for working at height

Maintenace tools

Authorized distributor

Tools for mounting and dismounting of bearings

Hydraulic tools

Bearing fitting tools

Nagrzewnice demontażowe

Zakres produktów

Nagrzewnice demontażowe

Zakres produktów

Nagrzewnice demontażowe

Zakres produktów

Nagrzewnice demontażowe

Zakres produktów

Nagrzewnice demontażowe

Zakres produktów

Electric hot plate

Portable Induction Heater

Small Induction Heaters

Medium Induction Heaters

Large Induction Heaters

Extra Large Induction Heaters

Heaters for dismounting

Lubrication solutions

Alignment tools

Condition monitoring

Our offer range

Key features and benefits

Data can be captured from a variety of sources:

Product range

Workshop tools
